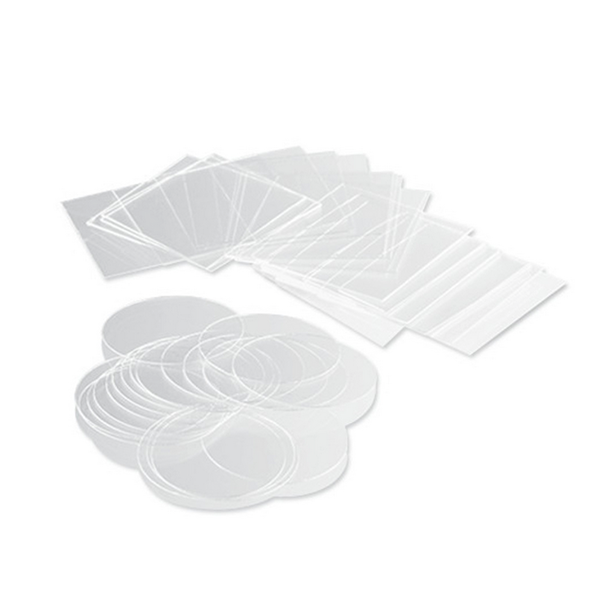

Cover glasses

Cover Glass Thickness 1

  • Thickness: 0.13 - 0.16 mm
  • Made of borosilicate glass, 1st hydrolytic class
  • Completely colorless and clear
  • Suitable for fluorescence microscopy
  • Complies with DIN ISO 8255 standards

Cover Glasses Thickness 1 from Marienfeld

  • Approved for in-vitro diagnostic applications in accordance with IVD Directive 98/79/EC
  • Features CE mark and batch number for comprehensive information and traceability

For covering microscopic specimens on microscope slides

  • To prevent condensation from forming on the objective lens
  • To provide the specimen with an optically flat surface

Cover glasses of thickness no. 1 are standardized to a thickness of 0.17 mm with a refractive index of 1.5255. The thickness of the cover glass must be considered when designing the microscope objective; otherwise, image quality may be compromised.
However, objectives with a numerical aperture up to 0.30 can typically be used with or without a cover glass. Oil immersion objectives can even reach a numerical aperture of up to 1.25.
The numerical aperture refers to the measure of a lens's ability to gather light and resolve fine details.

Width
Length

8ZC-50-0103

Platzhalter
Material
clear glass
Width
18 mm
Length
18 mm

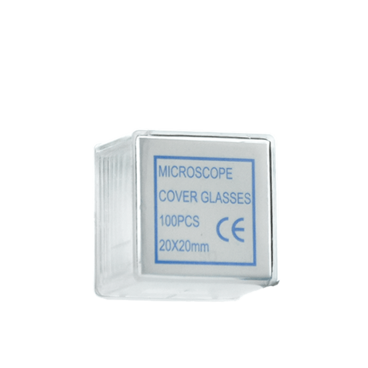

8ZC-50-0104

8ZC-50-0104
Material
clear glass
Width
20 mm
Length
20 mm

8ZC-50-0105

Platzhalter
Material
clear glass
Width
22 mm
Length
22 mm

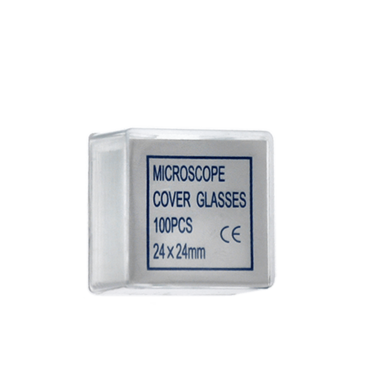

8ZC-50-0106

8ZC-50-0106
Material
clear glass
Width
24 mm
Length
24 mm

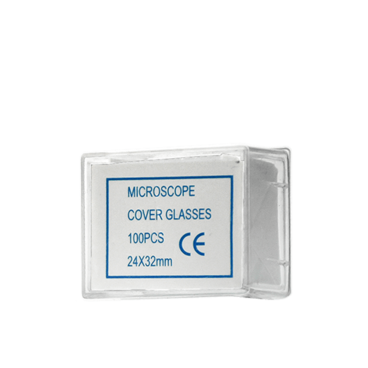

8ZC-50-0107

8ZC-50-0107
Material
clear glass
Width
24 mm
Length
32 mm

8ZC-50-0108

8ZC-50-0108
Material
clear glass
Width
24 mm
Length
40 mm

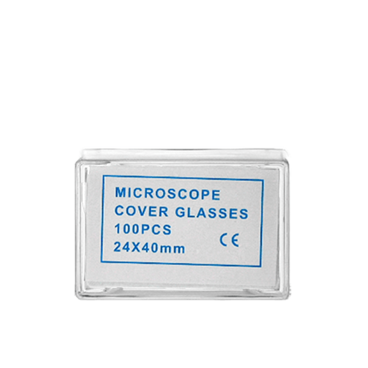

8ZC-50-0109

Platzhalter
Material
clear glass
Width
24 mm
Length
50 mm
