Measuring cylinder

High or low form:

  • DIN A or DIN B made of borosilicate glass with hexagonal base and burnt-in graduation in ceramic colour
  • made of polypropylene with raised scale, hexagonal base with studs, class B

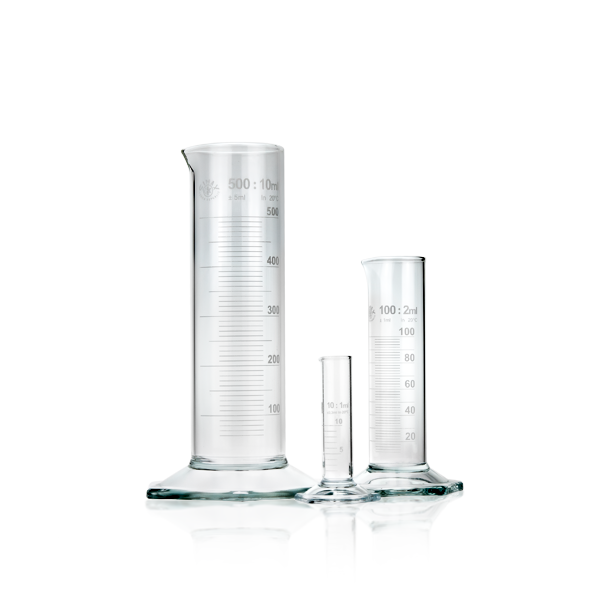

Measuring cylinder made of borosilicate glass 3.3

  • Temperature resistant up to +50 °C
  • withstand a temperature change of max. 100 °C difference
  • Resistant to acids, alcohols and chemicals, except hydrofluoric acid and concentrated alkaline solutions
  • dishwasher-safe

Measuring cylinder made of highly transparent polypropylene (PP) with raised scale.

  • guaranteed seamless inside so that residues and carry-over do not affect the analysis
  • have precisely adjusted ring marks at the main points so that the meniscus can be read accurately
  • Hexagonal base with studs guarantees a straight, firm stand
  • adjusted so that the amount of liquid absorbed corresponds to the printed volume specification
  • Suitable for contact with food in accordance with Regulation (EU) No. 10/2011

In addition to traditional laboratory uses, measuring cylinders are helpful for:

  • Brewers
  • Winemakers
  • Amateur chefs
  • Pharmacists and chemists
  • Black-and-white photo labs

Determining Oechsle Degrees with a Measuring Cylinder

The Oechsle degree (°Oe) is used to determine the sugar content in must (must weight) or berries. This involves comparing the weight of one liter of must to one liter of water at 17.5°C. The measurement is typically performed using a refractometer. For example, one liter of must with 76 °Oe weighs 1.076 g/ml.

This measurement can also be simulated using a 250 ml measuring cylinder and a kitchen scale with a precision of 0.1 g. To do this, fill the measuring cylinder with exactly 250 ml of must or wine and read the mass in grams. If the scale shows a mass of 271.5 g, you can calculate the density as follows: 271.5 g ÷ 250 ml = 1.086 g/ml, which corresponds to 86 °Oe.

Material
Specification
Form
Scale
Volume

8ZC-50-1460

8ZC-50-1460
Material
SIMAX clear glass
Volume
5 ml
Diameter
13 mm
Height
115 mm

8ZC-50-4218

8ZC-50-4218
Material
SIMAX clear glass
Volume
5 ml
Diameter
15 mm
Height
90 mm

8ZC-50-4230

Platzhalter
Material
SIMAX clear glass
Volume
5 ml
Diameter
12 mm
Height
115 mm

8ZC-50-1452

Platzhalter
Material
Polypropylen
Volume
10 ml
Diameter
15 mm
Height
145 mm

8ZC-50-1461

8ZC-50-1461
Material
SIMAX clear glass
Volume
10 ml
Diameter
15 mm
Height
135 mm

8ZC-50-1702

8ZC-50-1702
Material
Polypropylen
Volume
10 ml
Diameter
15 mm
Height
145 mm

8ZC-50-2741

8ZC-50-2741
Material
DURAN clear glass
Volume
10 ml
Diameter
14 mm
Height
137 mm

8ZC-50-4210

nur solange Vorrat
8ZC-50-4210
Material
clear glass
Volume
10 ml
Diameter
-
Height
-

8ZC-50-4219

8ZC-50-4219
Material
SIMAX clear glass
Volume
10 ml
Diameter
21 mm
Height
100 mm

8ZC-50-4231

Platzhalter
Material
SIMAX clear glass
Volume
10 ml
Diameter
15 mm
Height
135 mm

8ZC-50-1453

8ZC-50-1453
Material
Polypropylen
Volume
25 ml
Diameter
22 mm
Height
170 mm

8ZC-50-1462

8ZC-50-1462
Material
SIMAX clear glass
Volume
25 ml
Diameter
22 mm
Height
160 mm
